| Viewing Area |

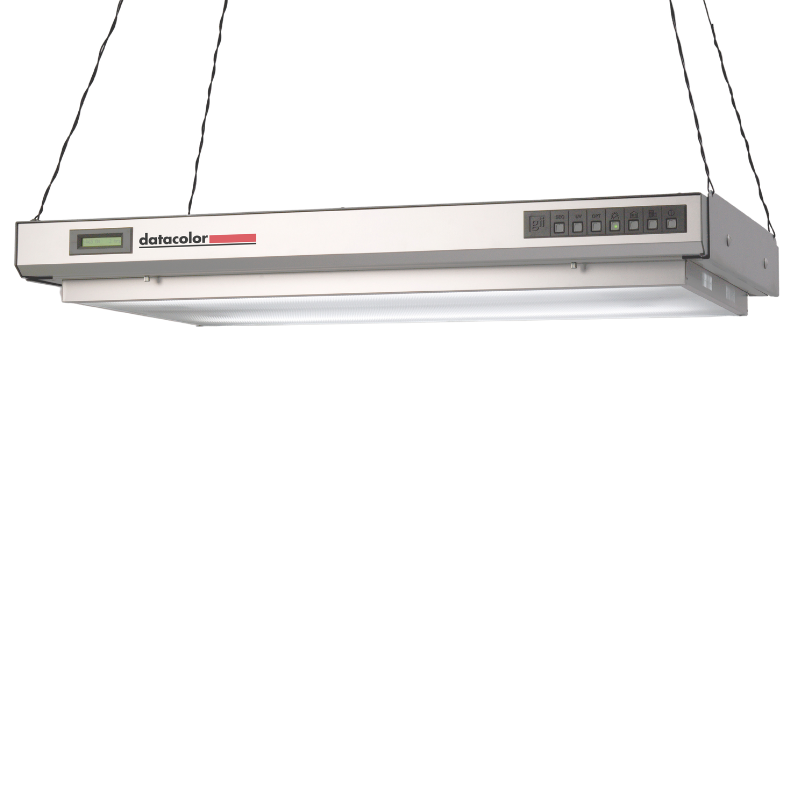

| Overhead | 48 x 71 x 51 cm
19 x 28 x 20 in | 64 x 102 x 64 cm
25 x 40 x 25 in | 76 x 132 x 76 cm
30 x 52 x 30 in | 36 x 61 x 34 cm
14 x 24 x 13 in | 36 x 61 x 40 cm
14 x 24 x 16 in | 36 x 61 x 40 cm
14 x 24 x 16 in | 42 x 64 x 48 cm
17 x 25 x 19 in | 42 x 64 x 48 cm
17 x 25 x 19 in | 56 x 89 x 58 cm
22 x 35 x 23 in |
| Number of Light Sources | 4 | 5 | 5 | 5 | 4 | 5 | 4 | 7 | 5 | 7 |
| Flourescent Models Light Sources |
| 120V Standard Configuration | D65, A, UV, CWF | D65, A, UV, TL83, CWF | D65, A, UV, TL83, CWF | D65, A, UV, TL83, CWF | D65, A, UV, CWF | D65, A, UV, TL83 CWF | D65, A, UV, CWF | N/A | D65, A, UV, CWF, TL83 or
D65, A, UV, CWF, TL84 | D65, A, UV, CWF, TL83, TL84, Horizon |
| 220V Standard Configuration | D65, A, UV, CWF | D65, A, UV, TL83, TL84 | D65, A, UV, TL83, TL84 | D65, A, UV, TL83, TL84 | D65, A, UV, TL84 | D65, A, UV, TL84 | D65, A, UV, TL84 | N/A | D65, A, UV, CWF, TL83 or
D65, A, UV, CWF, TL84 | D65, A, UV, CWF, TL83, TL84, Horizon |
| Optional | TL83, TL84, D50, D75, Horizon, TL835, 2700K LED, 3000K LED, 3500K LED, 4000K LED, Walmart LED | TL83, TL84, D50, D75, Horizon, TL835, 2700K LED, 3000K LED, 3500K LED, 4000K LED, Walmart LED | TL83, TL84, D50, D75, Horizon, TL835, 2700K LED, 3000K LED, 3500K LED, 4000K LED, Walmart LED | TL83, TL84, D50, D75, Horizon, TL835, 2700K LED, 3000K LED, 3500K LED, 4000K LED, Walmart LED | TL83, TL84, D50, Horizon, TL835, 2700K LED, 3000K LED, 3500K LED, 4000K LED, Walmart LED | TL84, D50, Horizon, TL835, 2700K LED, 3000K LED, 3500K LED, 4000K LED, Walmart LED | TL83, TL84, D50, TL835, 2700K LED, 3000K LED, 3500K LED, 4000K LED, Walmart LED | N/A | 4000K LED, U35, Walmart LED | 4000K LED, U35, Walmart LED |

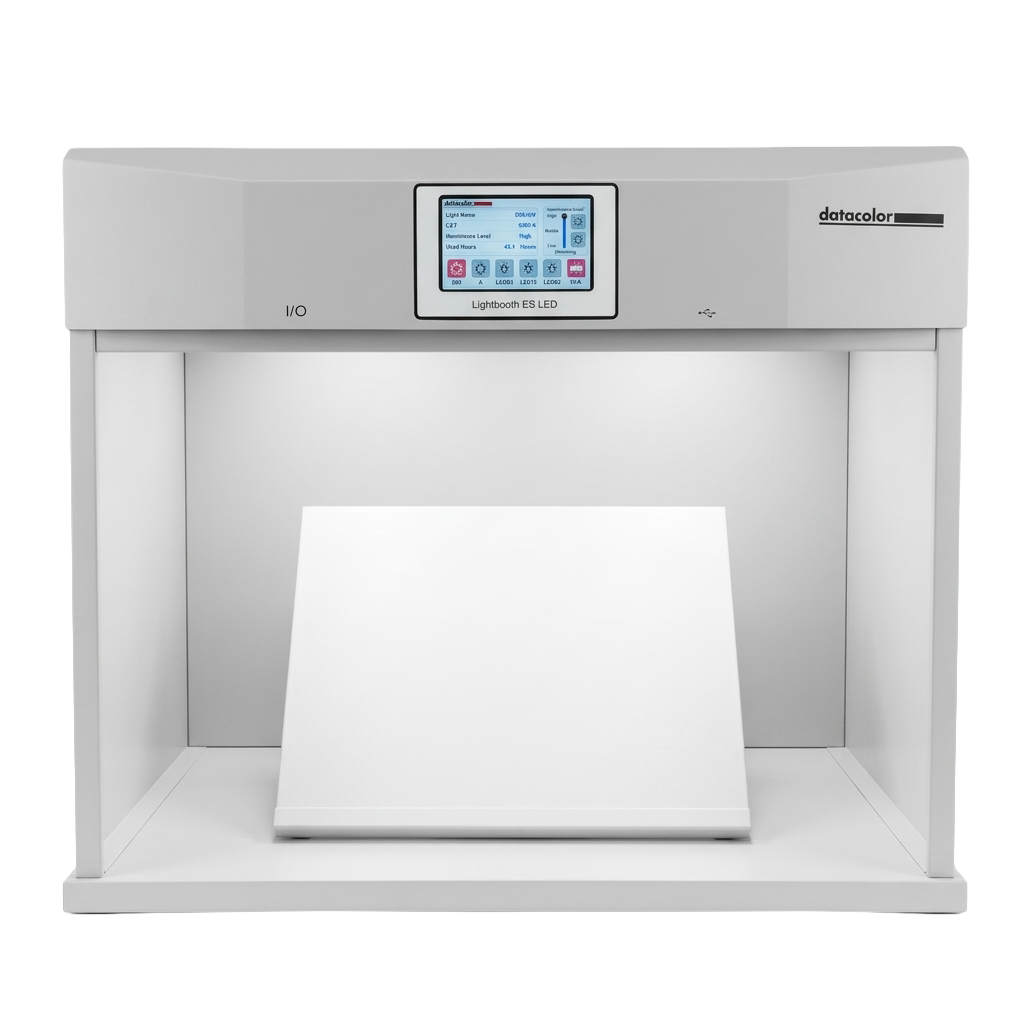

| LED Models Light Sources |
| 120V and 220V Standard Configuration | D65 LED, 2700K LED, 4000K LED, UV LED | D65 LED, 2700K LED, 3000K LED, 4000K LED, UV LED | D65 LED, 2700K LED, 3000K LED, 4000K LED, UV LED | D65 LED, 2700K LED, 3000K LED, 4000K LED, UV LED | D65 LED, 2700K LED, 4000K LED, UV LED | D65 LED, 2700K LED, 3000K LED, 4000K LED, UV LED | | LED D65, LED A, LED UVA, LED B2, LED B3, LED 3500K, LED 3100K | N/A | N/A |
| Optional | 3000K LED, D50 LED, 3500K LED, Walmart LED | D50 LED, 3500K LED, Walmart LED | D50 LED, 3500K LED, Walmart LED | D50 LED, 3500K LED, Walmart LED | 3000K LED, D50 LED, 3500K LED, Walmart LED | D50 LED, 3500K LED, Walmart LED | | Customized to Specifications | N/A | N/A |
| Features |
| Dimming for Daylight, Store & Home-Light (N/A for LED Models) | Optional | Optional | Optional | Optional | | | | |
(except for A) |
(except for D65, A, Horizon) |
| Push Button Control | | | | | | | | Touch Screen | Metal Dome | Metal Dome |
| Rocker Switch Lamp Selectors | | | | | | | | | | |
| Auto Light Source Sequencing | | | | | | | | | | |
| Lamp timer | | | | | Daylight Only | Daylight Only | Daylight Only | | | |
| Optically neutral diffuser – Fluorescent Models | | | | | Optional | Optional | Optional | N/A | | |
| Optically neutral diffuser – LED Models | | | | | | | | | N/A | N/A |
| Munsell N5 or N7 grey surround | N/A | Choose One | Choose One | Choose One | Choose One | Choose One | Choose One | Choose One | Choose One | Choose One |
| 45° viewing table | Optional | Optional | Optional | Optional | Optional | Optional | Optional | | | |
| Height adjustable floor stand | N/A | Optional | Optional | Optional | | | | | | |
| Remote Control | (only 425RC) | | | | | | | | | Optional |
| Service indicator | | | | | | | | | | |
| Physical Specs |
| Physical dimensions (h x w x d): | 13 x 102 x 66 cm
5 x 40 x 26 in | 63 x 76 x 55 cm
24.75 x 30 x 21.5 in | 79 x 107 x 68 cm
31 x 42 x 26.75 in | 91 x 137 x 80 cm
36 x 54 x 31.5 in | 48 x 67 x 42 cm
19 x 26.5 x 16.5 in | 48 x 67 x 48 cm
19 x 26.5 x 19 in | 48 x 67 x 48 cm
19 x 26.5 x 19 in | 59 x 68 x 54 cm
23 x 27 x 21 in | 59 x 70 x 54 cm
23 x 27 x 21 in | 92 x 99 x 69 cm
36 x 39 x 27 in |
| Net Weight | 12kg
27lbs | 23kg
51lbs | 36kg
79lbs | 50kg
110lbs | 11kg
25lbs | 14kg
30lbs | 14kg
31lbs | 27kg
59lbs | 29kg
63lbs | 76kg
168lbs |
| Shipping Weight | 16kg
35lbs | 32kg
70lbs | 64kg
140lbs | 93kg
205lbs | 14kg
30lbs | 17kg
38lbs | 17kg
38lbs | 32kg
70lbs | 34kg
74lbs | 98kg
215lbs |
| Units can be coupled for larger width | | | | | | | | | | |
| Compliance |
| AATCC Procedure #9, AS 1580.6001.1, ASTM D1729, BS-950/2, ISO 3668, SAE J361, Tappi T515 | AATCC Procedure #9, AS 1580.6001.1, ASTM D1729, BS-950/2, ISO 3668, SAE J361, Tappi T515 | AATCC Procedure #9, AS 1580.6001.1, ASTM D1729, BS-950/2, ISO 3668, SAE J361, Tappi T515 | AATCC Procedure #9, AS 1580.6001.1, ASTM D1729, BS-950/2, ISO 3668, SAE J361, Tappi T515 | AATCC Procedure #9, AS 1580.6001.1, ASTM D1729, BS-950/2, ISO 3668, SAE J361, Tappi T515 | AATCC Procedure #9, AS 1580.6001.1, ASTM D1729, BS-950/2, ISO 3668, SAE J361, Tappi T515 | AATCC Procedure #9, AS 1580.6001.1, ASTM D1729, BS-950/2, ISO 3668, SAE J361, Tappi T515 | AATCC EP9, AS 1580.6001.1, ASTM D1729, ISO 3668, ISO 13076, ISO 23603, DIN 6173, CIE S012/E, CIE 51.2, SAE J361 | AATCC EP9, AS 1580.6001.1, ASTM D1729, ISO 3668, ISO 13076, ISO 23603, DIN 6173, CIE S012/E, CIE 51.2 | AATCC EP9, AS 1580.6001.1, ASTM D1729, ISO 3668, ISO 13076, ISO 23603, DIN 6173, CIE S012/E, CIE 51.2, SAE J361 |
