Instrument Type |
Portable Spectrophotometer |
Portable Spectrophotometer |
Measurement Geometry |
45° illumination, 0° viewing. |
45° illumination, 0° viewing. |
Light Source |
LED solid-state circumferential illumination |
LED solid-state circumferential illumination |
Wavelength Range |
400 nm – 700 nm |
400 nm – 700 nm |
Effective Bandwidth |
10nm |
10nm |
Spectral Analyzer |
Dual 256 diode array |
Dual 256 diode array |
20 read repeatability on white tile using double flash (CIELAB) (1) |
< 0.01 E*ab on white ceramic tile |
< 0.01 E*ab on white ceramic tile |
Inter-instrument agreement: reflectance measurements (CIELAB)(1,2 &3) |
0.15 E*ab avg of 12 BCRA tiles, 0.25 E*ab max on any BCRA tile |
0.15 E*ab avg of 12 BCRA tiles, 0.25 E*ab max on any BCRA tile |
Aperture Size |
MAV 11 mm target window (8 mm measurement) |
MAV 11 mm target window (8 mm measurement) |
Functional Operating Environment (2) |
10 to 40 C up to 85% RH, non-condensing |
10 to 40 C up to 85% RH, non-condensing |
Physical Specifications |

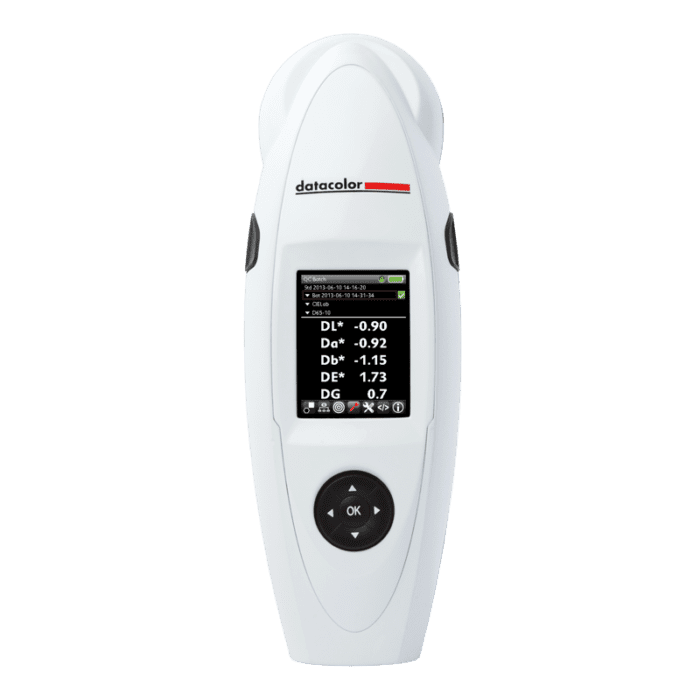

Display |
Color LCD Backlit (2.8″, 240 x 320 pixels) |
Color LCD Backlit (2.8″, 240 x 320 pixels) |
Weight |
1.8 lbs (816 g) |
1.8 lbs (816 g) |
Power Requirements |
5Vdc,3.2A (input to the 45)
100-240 VAC (input to the AC power adapter)
50/60Hz, 0.6A input |
5Vdc, 3.2A (input to the 45G)
100-240 VAC (input to the AC power adapter)
50/60Hz, 0.6A input |
Power Consumption |
3.2A |
3.2A |
Statements of Note: |

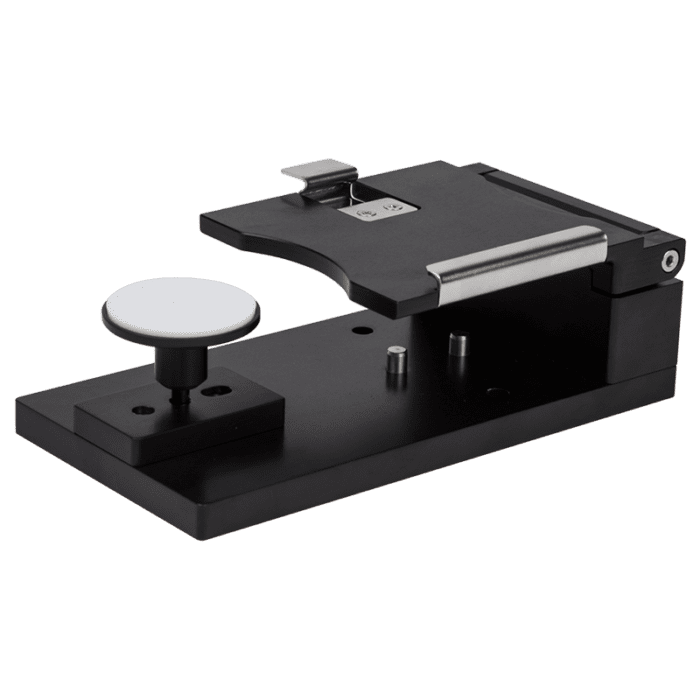

Comes complete with: Aluminum case, Spectrophotometer with certificate of instrument performance, Switching power supply, Global connectors, USB cable, USB memory-stick with calibration data, User guide, Quick start guide, Black trap, White calibration tile, Precision Calibration Stand, Gloss calibration tile |
Comes complete with: Aluminum case, Spectrophotometer with certificate of instrument performance, Switching power supply, Global connectors, USB cable, USB memory-stick with calibration data, User guide, Quick start guide, Black trap, White calibration tile, Precision Calibration Stand, Gloss calibration tile. |
Additional Technical Specifications |
Data Interface |
USB, Bluetooth wireless |
USB, Bluetooth wireless |
Spectrometer Principle |
Master concave holographic grating |
Master concave holographic grating |
Battery |
Rechargeable Li-Ion > 2,000 measures/charge |
Rechargeable Li-Ion > 2,000 measures/charge |
Gloss Repeatability |
+/- 0.1 GU from 1-10; +/- 0.2 GU from 10-100 |
|
Gloss Reproducibility |
+/- 0.5 GU from 1-10, +/- 1 GU from 10-100 |
|
Color Systems: |
CIELab, CIELch, Lab (h), XYZ, Yxy |
CIELab, CIELch, Lab (h), XYZ, Yxy |
Color Difference: |
E*, E (h), E94, ECMC (2:1, 1:1, adjustable l:c), E2000 |
E*, E (h), E94, ECMC (2:1, 1:1, adjustable l:c), E2000 |
Indices |
Metamerism, CIE, Whiteness (CIE an E313), Yellowness (D1925 and E313) |
Metamerism, CIE, Whiteness (CIE an E313), Yellowness (D1925 and E313) |
Illuminants |
D50, D55, D65, D75, A, C, U3000, Horizon, F2, F7, F11 |
D50, D55, D65, D75, A, C, U3000, Horizon, F2, F7, F11 |
Data Storage |
> 2,000 standards w/ Tolerances, max 10,000 batches |
> 2,000 standards w/ Tolerances, max 10,000 batches |
Languages |
English, French, German, Portugues, Simplified Chines and Spanish |
English, French, German, Portuguese Simplified Chinese and Spanish |
Gloss |
Absolute, Difference – (60 gloss) |
|
